CHARACTERISTICS
Vee blocks are manufactured from high quality castings, properly seasoned against distortion these blocks are stress relieved.
Ideal for holding round and irregular shape parts in drilling, machining, inspection, etc. Accurately machined with 90° Vee in center . Matched and numbered pairs. Machined square and parallel to base within .001" (.025mm).

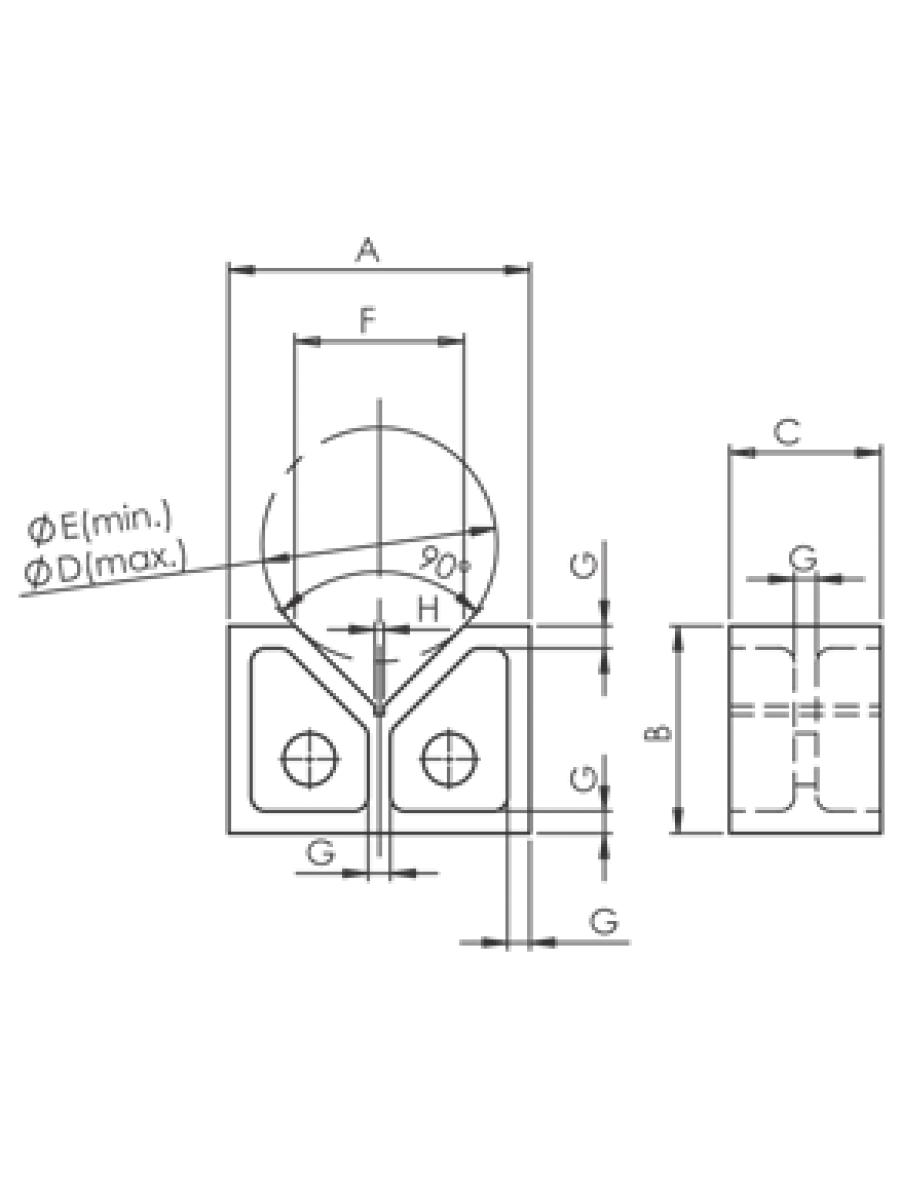

Ordering No.	Size A x B x C		Dimensions										Net Weight Kgs.
	Size A x B x C		D		E		F		G		H
	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm
110525	2x1.1/4x15/16	51x32x24	1.5/16	33	9/32	7	1	25	9/32	7	5/32	4	0.450
110530	3x2.3/8x1.1/4	76x60x32	2.3/8	60	9/32	7	1.3/4	45	9/32	7	5/32	4	1.420
110535	4x2.5/8x1.5/8	102x67x41	3	75	3/8	10	2.3/16	55	3/8	10	3/16	5	2.300
110540	5x3.3/16x2	127x79x51	3.1/4	82	3/8	10	2.3/8	60	7/16	11	3/16	5	4.000
110545	6x3.1/2x2.1/2	152x89x63	4.5/16	110	3/8	10	3.3/16	80	1/2	13	3/16	5	7.000
110550	7x5.1/2x4	178x140x102	5	128	7/16	11	3.5/8	92	9/16	14	1/4	6	11.000
110555	8x5.1/2x4	203x140x102	6.1/4	158	7/16	11	4.1/2	114	5/8	15	1/4	6	22.000
