PRECISION ROTARY HEAD MACHINE VISE (with Swivel Base)

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTICS
  • Manufactured from heavy duty close grained high tensile seasoned cast iron, with precision rotary head four way block. Made of tool steel hardened & ground, Block hardness is 55±5 HRC. parallelism <0.015mm. Horizontal movement each side 0° to 90°, jaw block rotates on the axis. The jaw block can hold the circular job vertical and horizontal and also hold the flat job on flat surface. The 360° swivel base further allows rotation.

Need Expert Advice
-Call us-

+ 91 11 43118888

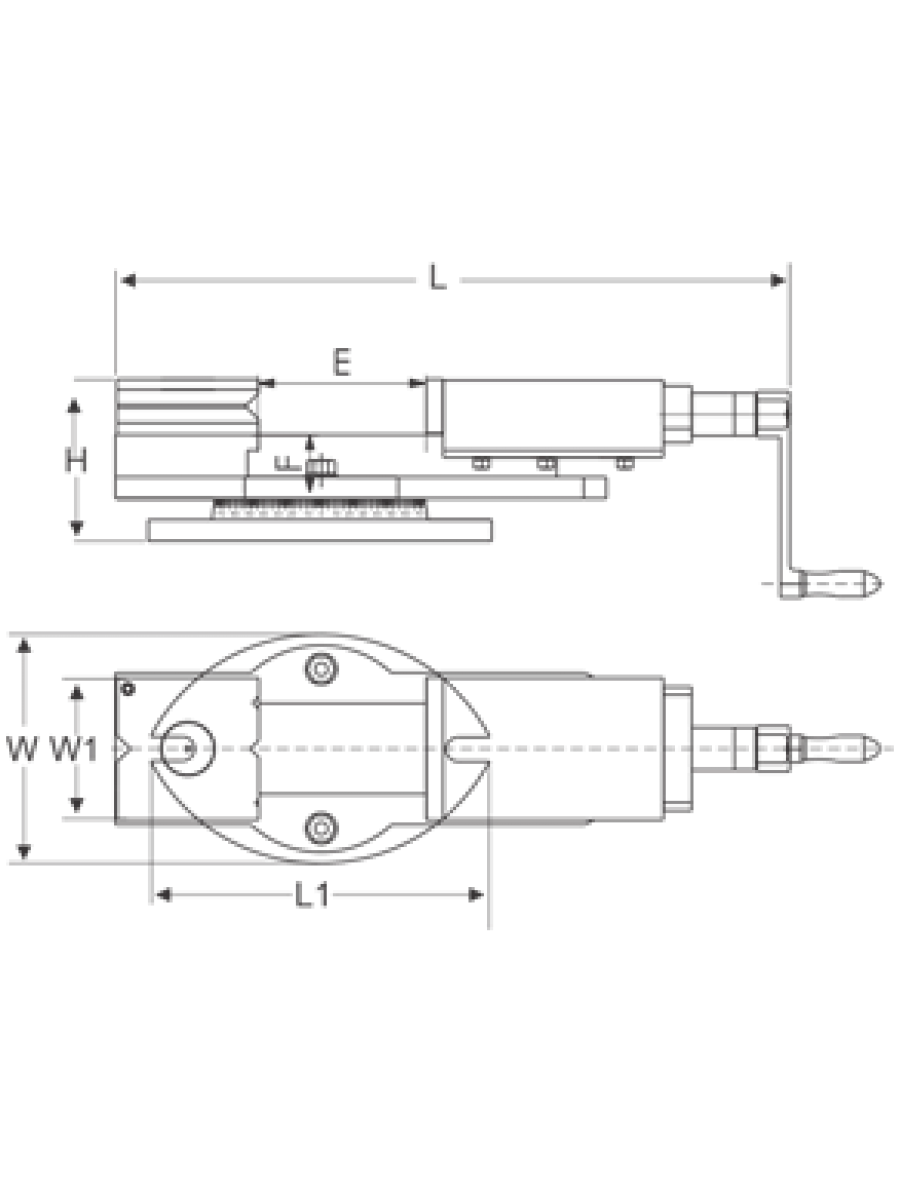

Technical Data

Ordering No. Length Width Height Jaw Width Jaw Opening Jaw Depth Base Length Net Weight
Kgs.
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
110073 13.1/2 345 6.9/16 162 4.5/8 115 4 105 4 100 1.1/2 40 9.1/2 240 19.000
110074 16.1/2 445 8.3/4 220 6.1/4 160 6 150 6 150 2 50 11.5/8 295 46.000
110076 8.7/16 215 4.3/8 110 3.3/4 95 2.7/16 60 3.3/8 90 1.3/16 30 6 150 6.000
