CHARACTERISTICS
Supplied in pairs these vee blocks are made from special tool steel precision ground and hardened to 55 - 60HRC. The blocks have two 90° Vee's of two different sizes which are central, parallel and square with the ends and sides. The squareness of the vee grooves with respect to all surfaces is within .001" ( .025mm ) Very useful for general layout work and for holding round workpieces during drilling, machining and grinding. Each Pair of Vee block is supplied with a set of clamps.
Both our 110590 & 110595 Vee block sets have top clamps which are non protruding allowing the block to be used in the side positions as well as the base.

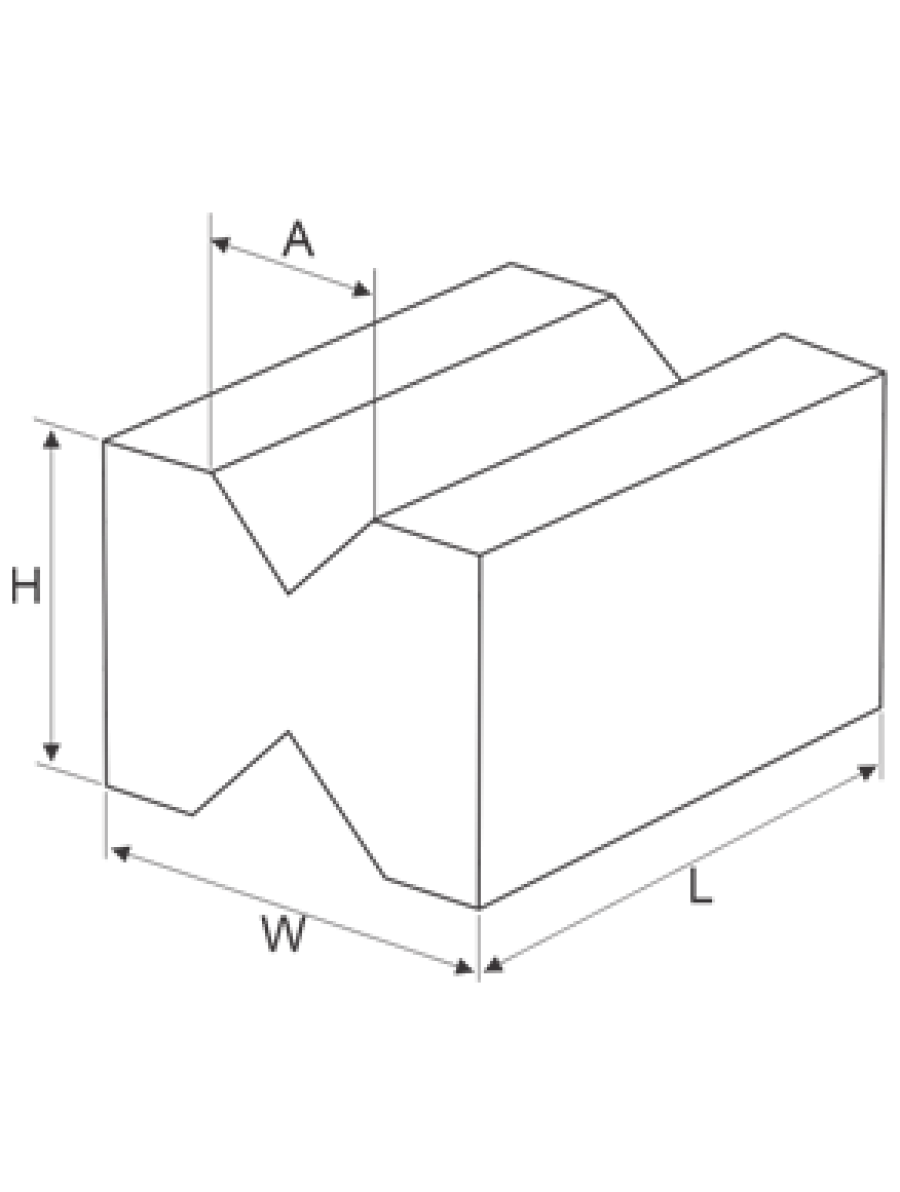

Ordering No.	Dimensions Block						Width of Small VEE		Width of Large VEE		Clamping Capacity		Net Weight Kgs.
	Length		Width		Height		Width of Small VEE		Width of Large VEE		Clamping Capacity
	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm
110570	1.5/8	42	1.1/4	32	1.1/4	32	7/16	11	13/16	20	1	25	.700
110575	2	50	1.1/2	38	1.1/2	38	1/2	13	1.3/32	28	1.1/2	38	1.200
110580	1.3/4	45	1.5/8	42	1.3/8	35	9/16	14	1.3/32	28	1.1/4	32	1.00
110585	2.3/4	70	1.3/4	45	1.5/8	42	11/16	17	1.5/16	33	1.1/2	38	2.00
110590	2.3/4	70	2.1/2	63	1.3/4	45	1	25	1.3/16	30	1.1/2	38	2.800
110595	4.7/8	122	3.1/2	87	2.3/4	70	1.1/4	32	1.19/32	40	2.1/8	53	10.00
